DS5900-1D USB Barcode Scanner 300 Scans/Sec CCD 1D Reader

MOQ : 1

Price : 10

Model NO. : DS5900-1D

Interface Type : USB, RS232

Scan Speed : 300 scans/sec

Scan Element : CCD

Camera Resolution : 640*480

Reading Precision : 3mil Code39

Depth of Field : 10-600mm

Decoding Speed : 300times/S

Cable Length : 1.5m

Weight : 160g

Resolution : 2500

Drop Height : 1.5m

Operating Temperature : -20 to 55 Degree

Storage Temperature : -40 to 60 Degree

Dimensions : L165.5mm * W63.5mm * H92.3mm

Contact Now

Quick scanning Code39 Reader CCD 1D  Wired USB  BT Handheld Barcode Scanner

DS5900-1D USB Barcode Scanner 300 Scans/Sec CCD 1D Reader
Product Parameters

Scan Type Linear CCD
Light Source Visible red light, 625±10nm
CPU 32-bit
Resolution 2500
Reading precision ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 300times/s
Depth of field 10mm-600mm
Scan Mode Manual ,Continuous, Auto Sense, Flashing
Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
  Pitch:±60°
  Roll: ±30°
  Skew: ±60°
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.

Weight ≈160g(without cable)
Dimension L165.5mm * W 63.5mm * H92.3mm
Communication Mode USB(USB-KBW,USB-COM),RS232
Interface Type USB , RS232
Power Supply DC 5V@80mA(work)

Operating temperature -20ºC to 55ºC
Storage  temperature -40ºC to 60ºC
Humidity 5% to 95%(non-condensing)
Drop Height 1.5m
Temp. Test 30 minutes for high Temp., 30 minutes for low Temp.,
High Temp. 60ºC
Low Temp. -20ºC
Transport vibration Test 10H@125RPM

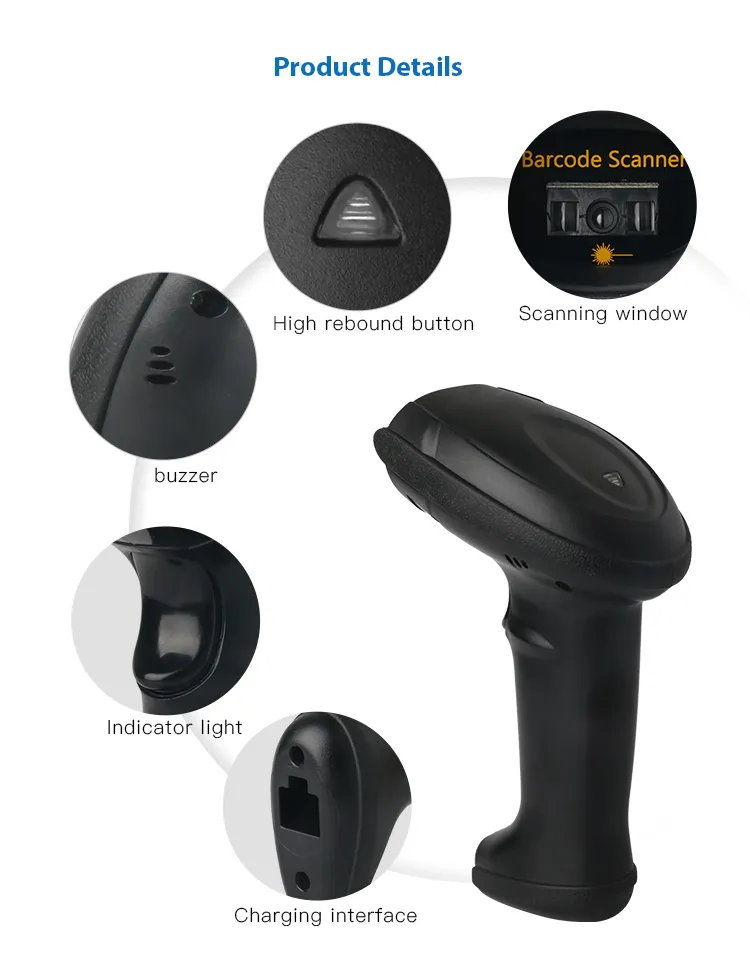

Detailed Photos

DS5900-1D USB Barcode Scanner 300 Scans/Sec CCD 1D Reader
DS5900-1D USB Barcode Scanner 300 Scans/Sec CCD 1D Reader
DS5900-1D USB Barcode Scanner 300 Scans/Sec CCD 1D Reader
DS5900-1D USB Barcode Scanner 300 Scans/Sec CCD 1D Reader

Application

DS5900-1D USB Barcode Scanner 300 Scans/Sec CCD 1D Reader

Company Profile



DS5900-1D USB Barcode Scanner 300 Scans/Sec CCD 1D Reader

Packaging & Shipping

DS5900-1D USB Barcode Scanner 300 Scans/Sec CCD 1D Reader
Certifications

DS5900-1D USB Barcode Scanner 300 Scans/Sec CCD 1D Reader

Exhibition

DS5900-1D USB Barcode Scanner 300 Scans/Sec CCD 1D Reader
